High Performance Led Video Wall Screen P2.5 P3 P4 P5 P6 Indoor Outdoor Led Display Screen

Name: High Performance Led Video Wall Screen P25 P3 P4 P5 P6 Indoor Outdoor Led Display Screen
Brand: CONWIN
Price: 1 USD

China High Performance Led Video Wall Screen P2.5 P3 P4 P5 P6 Indoor Outdoor Led Display Screen wholesale

Brand Name : CONWIN

Model Number : DXH2.6

Certification : CE,ROHS

Place of Origin : China

MOQ : 1sqm

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000sqm/month

Delivery Time : 5-8 working days

Packaging Details : wooden box or carton

Contact Now

FEATURES

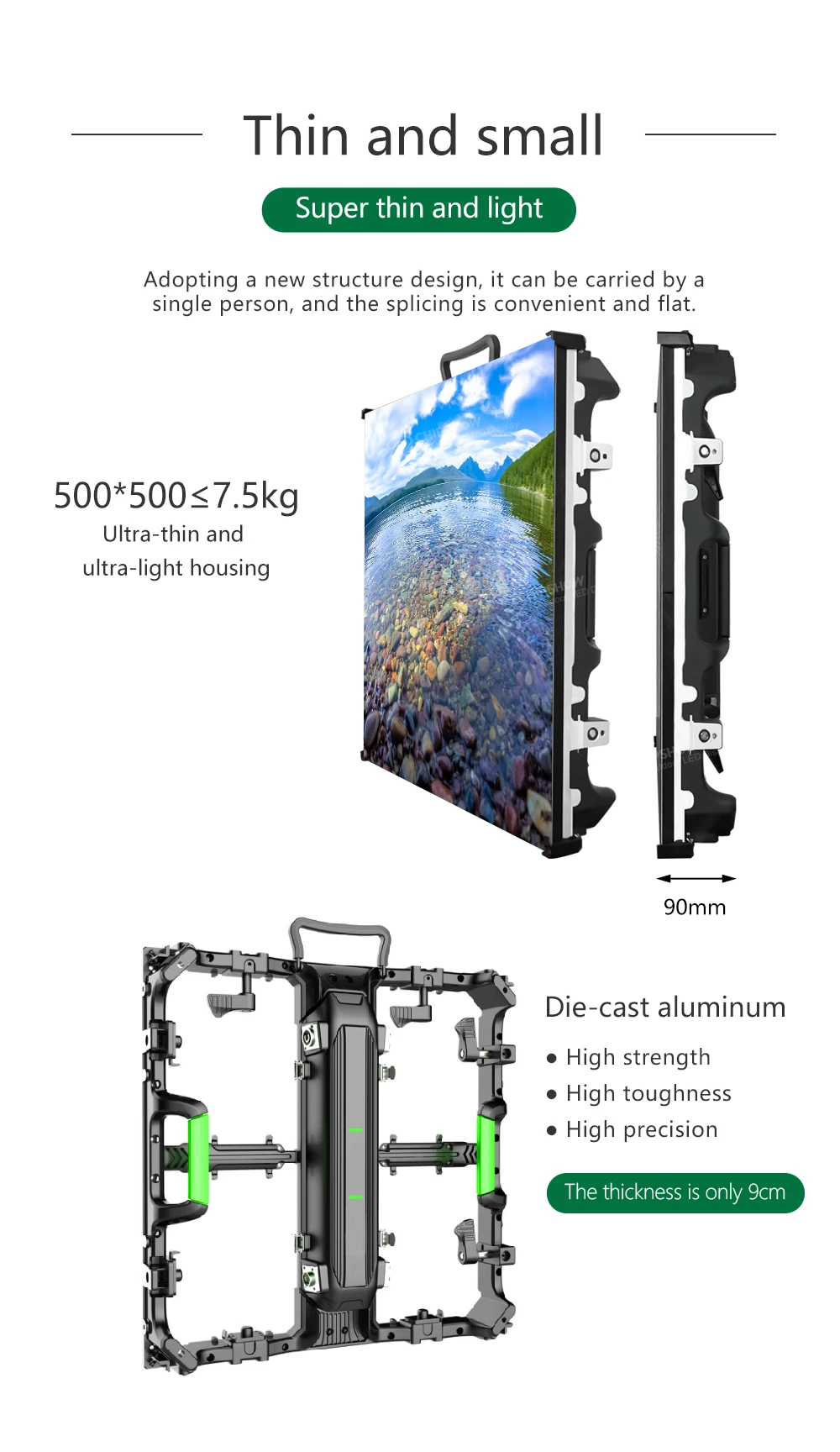

1. High precision cast aluminum cabinet, ultra-thin and light weight, 500x500 ≤ 7.5KG/cabinet, with a thickness of only 90mm; 2. 500X500/500X1000mm cabinets can be mixed and assembled to create a variety of shapes;

3. Both the 500x500mm and 500x1000mm cabinets use a minimalist mini control box of the same model and can be shared,Saving installation and calibrating time;

4. Optional curved lock, capable of splicing large screens with ± 10~15 ° inner arc, outer arc, 90°corner, etc;

5. The modular button lock design allows for fast assembly, disassembly and maintenance within 5 seconds;

6. Optional magnetic module can achieve complete assembly, disassembly and maintenance of the module and power supply front the front;

7. Work in silence: no fan, noise ≤ 40DB; Not affecting the on-site audio-visual effect;

8. Point by point calibration: White balance point by point calibration to ensure consistency and uniformity of the display;

9. Background large screen optimization plan; High refresh, SLR, camera 1/3000S shutter capture, no flicker, no ghost scanning line;

10. Indoor and outdoor universal pixel pitches with P1.9/2.6/2.9/3.9/4.8 ets; Specialized in providing overall LED display solutions for events, conferences, stage, product launches and real estate.

Products Description

High Performance Led Video Wall Screen P2.5 P3 P4 P5 P6 Indoor Outdoor Led Display Screen

Technical Parameter

Indoor Spec	1.953mm	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1515	SMD2121	SMD2121	SMD2121
Pixel Density/sqm	262177 dots	147456 dots	112896 dots	65536dots
Module Size/mm	250x 250	250x 250	250x 250	250x 250
Cabinet Size	500x500mm	500x500mm 500x1000mm	500x500mm 500x1000mm	500x500mm 500x1000mm
Cabinet Resolution	256*256Dots	192x 192dots	168x 168 dots	128xd128ots
Cabinet Weight	12.5Kg	12.5Kg	12.5Kg	12.5Kg
IP Rating	IP40	IP31	IP31	IP31
Brightness /sqm	500- -800 nits	800 nits	800 nits	800 nits
View Angle/°	120/120(HM)	120/120(HM)	120/120(HM)	120/120(HM)
Gray Scale/bit	≥14bit	≥14bit	≥14bit	≥14bit
Max. Power ConsumptionW	500 W/sqm	500 W/sqm	500 W/sqm	500 W/sqm
Ave. Power ConsumptionW	170 W/sqm	170 W/sqm	170 W/sqm	170 W/sqm
Refresh Frequency/Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-20"C~+50"C
Operating Humidity	10~90%RH
Operating Life	10000Hours

High Performance Led Video Wall Screen P2.5 P3 P4 P5 P6 Indoor Outdoor Led Display Screen Images
